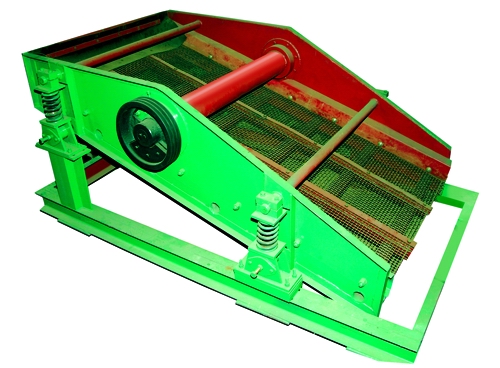

HANGING TYPE SELF CENTERING VIBRATING

Classification:Screen powder machine series Time:2020-12-22 06:29:55 Views:
Model
Mesh area
(m2)
Mesh layer numbers
maximum particle size of feeding
(mm)
processing ability
(t/h)
Mesh size(mm)
Double vibration amplitude(mm)
Vibration times   (times/min) Motor type Motor power(kw) Weight (kg)
ZD918 1.6 1 60 10~30 1~25 6 1000 Y100L-4 2.2 553
2ZD918 1.6 2 50 10~30 1~25 6 1000 Y100L-4 2.2 702
ZD1224 2.9 1 100 70~210 6~40 0~7 1000 Y112M-4 4 1130
2ZD1224 2.9 2 100 70~210 6~40 0~7 850 Y112M-4 4 1545
ZD1530 4.5 1 100 90~270 6~50 6~7 850 Y132S-4 5.5 1650
2ZD1530 4.5 2 100 90~270 6~50 6~7 850 Y132S-4 5.5 2260
ZD1540 6 1 100 90~270 6~50 7 850 Y132M-4 7.5 2070
2ZD1540 6 2 100 90~270 6~50 7 850 Y132M-4 7.5 2850
ZD1836 6.5 1 150 100~300 6~50 7 850 Y160M-4 11 1960
2ZD1836 6.5 2 150 100~300 6~50 7 850 Y160M-4 11 2840
ZD2160 12 1 150 240~54 10~50 8 950 Y180L-4 22 6529
