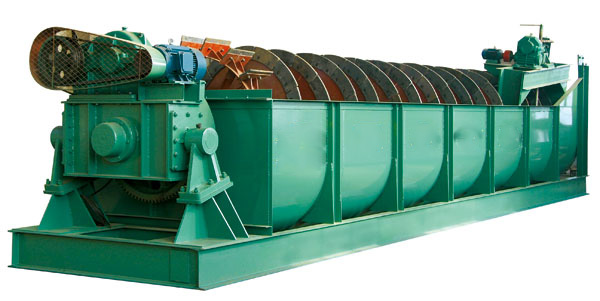

SPIRAL CLASSIFIER

Classification:Classifier series Time:2020-12-22 06:36:48 Views:

Type	Model	Screw rotational speed(r.p.m)	According to the sand return processing ability (t/d)	According to the sand return processing abilityt/d	Spiral diameter mm	Helix length mm	Flume slope	Drive motor model	Driving motor powerkw	Lifting motor model	Lifting motor powerkw	Weight kg
High weir type single spiral	FLG-300	8.3～22	30～80	10-30	φ300	3680	14-18.5	Y90L-6	1.1	Manual	-	668
	FLG-500	8.5～15.5	145～260	21-75	φ500	4246	14-18.5	Y90L-6	1.1	Manual	-	1600
	FLG-750	2.4～9.9	255～564	65-154	φ750	4980	14-18.5	Y132S-6	3	Manual	-	2716
	FLG-1000	3.5～7.6	473～1026	85	φ1000	6120	14-18.5	Y132M2-6	5.5	Manual	-	4400
	FLG-1200	5～8	1165～1630	155	φ1200	6125	14-18.5	Y132M2-6	5.5	Y90L-4	1.5	8765
	FLG-1500	2.5～6	1140～2740	235	φ1500	7940	14-18.5	Y160M-6	7.5	Y100L1-4	2.2	12500
	FLG-2000	3.6～5.5	3890～5940	400	φ2000	8250	14-18.5	Y160L-6/4	11;15	Y100L2-4	3	20814
	FLG-2400	3.64	6800	580	φ2400	8940	14-18.5	Y160L-4	15	Y100L2-4	3	25650
	FLG-3000	3.2	11650	890	φ3000	13950	14-18.5	Y200L2-6	22	Y113M-4	4	37000
High weir type double helix	2FLG-1200	5～8	2340～3200	310	φ1200	6125	14-18.5	Y132M2-6	5.5×2	Y100L1-4	2.2×2	15840
	2FLG-1200	5～8	2340～3200	310	φ1200	6125	14-18.5	Y132M2-6	5.5×2	Y100L1-4	2.2×2	15840
	2FLG-1500	2.5～6	2280～5480	470	φ1500	7940	14-18.5	Y160M-6	7.5×2	Y100L-4	2.2×2	22110
	2FLG-2000	3.6～5.5	7780～11880	800	φ2000	8900	14-18.5	Y200L2-6,Y200L-4	22;30	Y100L2-4	3.0×2	36341
	2FLG-2400	3.67	13600	1160	φ2400	11500	14-18.5	Y200L-4	30	Y100L2-4	3.0×2	45874
	2FLG-3000	3.2	23300	1785	φ3000	12140	14-18.5	Y225M-4	45	Y112M-4	4.0×2	73030
Submerged single spiral	FLC-1000	1.6～7.4	216～1000	50-260	φ1000	7913	14-18.5	Y132M2-6	5.5	Manual		5195
	FLC-1200	5～7	1150～1640	120	φ1200	8100	14-18.5	Y160M-6	7.5	Y100L-4	2.2	11200
	FLC-1500	2.5～6	1140～2740	185	φ1500	10190	14-18.5	Y160M-6	7.5	Y100L1-4	2.2	15320
	FLC-2000	3.6～5.5	3890～5940	320	φ2000	12605	14-18.5	Y160L-6/4	11×2;15	Y100L2-4	3	29060
	FLC-2000	3.6～5.5	3890～5940	320	φ2000	12605	14-18.5	Y160L-6/4	×2	Y100L2-4	3	29060
	FLC-2400	3.64	6800	455	φ2400	13940	14-18.5	Y180M-4	18.5	Y112M-4	3	37267
	FLC-3000	3.2	11650	705	φ3000	13950	14-18.5	Y200L4	30	Y112M-4	4	43500
Submerged double helix	2FLC-1200	3.8～6	1770～2800	240	φ1200	8040	14-18.5	Y160M-6	7.5×2	Y100L1-4	2.2×2	19610
	2FLC-1200	3.8～6	1770～2800	240	φ1200	8040	14-18.5	Y160M-6	7.5×2	Y100L1-4	2.2×2	19610
	2FLC-1500	2.5～6	2280～5480	370	φ1500	10140	14-18.5	Y160M-6	7.5×2	Y100L1-4	2.2×2	27450
	2FLC-2000	3.6～5.5	7780～11880	640	φ2000	12600	14-18.5	Y200L2-6,Y200L-4	22;30	Y100L2-4	3.0×2	50000
	2FLC-2400	3.67	13700	910	φ2400	13700	14-18.5	Y200L-4	30	Y100L2-4	3.0×2	53491
	2FLC-3000	3.2	23300	1410	φ3000	13900	14-18.5	Y225M-4	45	Y112M-4	4.0×2	84900
